Abstract

Background: With the increasing complexity of optimization problems in the scientific environment, evolutionary algorithms are becoming more and more popular. One area in which such algorithms are gaining popularity is pharmacokinetics.
Methods: In this study, a new evolutionary algorithm of interacting countries inspired by the classical genetic algorithm, island algorithm and migration algorithm is proposed. The algorithm is applied to find the unknown parameters of a five-compartment pharmacokinetic model describing the pharmacokinetics of porphyrin-fullerene nanoparticles (PMC16) in the body when administered once intravenously.
Results: The algorithm enables significant improvement in the accuracy of in silico modeling results compared to the pharmacokinetic curves obtained from PMC16 distribution in heart, liver, and brain tissues in vivo.
Conclusion: The results obtained with using the algorithm prove its efficiency and applicability in this field of in silico modeling of pharmacokinetics of porphyrin-fullerene nano pharmacophores.

Keywords:Models of population dynamics, Complex systems models, Biosystem theoretical models, In silico, Evolutionary models, Genetic algorithm, Porphyrin-fullerene nanocationites, Neuroprotectors

Introduction

The complexity of problems solved by the scientific community has increased over time in scientific fields such as robotics, bioinformatics, decision-making, machine learning, and others. For most of these problems, the optimal solution is non-obvious and difficult to achieve. To solve them, an approach based on Darwinian natural evolution has been proposed, which has been given the name Evolutionary Computing (EC) [1-2].

ECs involve a series of algorithms called Evolutionary Algorithms (EAs). EAs model the evolution of a population to find optimal solutions to complex problems. The main application of EAs is related to problems for which the use of a simple deterministic algorithm is impossible or may lead to inadequate results. For example, it is known that simple algorithms cannot find the global extremum when the objective function of optimisation is complex. In recent years, the subject of EAs has become increasingly popular, especially in the context of their application to solve complex practical optimisation problems in different areas of economy, industry, and medicine [3-7].

Currently, evolutionary algorithms are increasingly applied in the field of pharmacokinetics, including the search for covariance models in population pharmacokinetic analysis [8,9]. Separately, these algorithms are widely used to search for unknown parameters of pharmacokinetic models [10,11]. Thus, in multi-compartment models, where different organs are represented as chambers connected to each other [12], parameters affecting the rate of drug transport between organs can be estimated.

The recent discovery of the biophysical control of the energy production process in mitochondria through the so-called magnesium-25 magnetic isotope effect prompted the development of a pharmacologically suitable [Mg2+] ion nanocarrier. It is the magnetic isotope of magnesium [25Mg2+] (nuclear spin +5/2, magnetic moment 0.85 Bohr magneton, fraction in the natural isotope mixture 11 %), which has been shown to be a specific hyper activator of most [Mg2+]-dependent reactions of ATP synthesis in the cell. In contrast to the non-magnetic isotopes [24Mg2+] and [26Mg2+], it is the only magnetic isotope of magnesium. It has been stated that hyperactivation of energy metabolism by [25Mg2+] ions requires negligible amounts of these ions and occurs even in conditions of deep tissue hypoxia [13].

This biophysical phenomenon could be used to correct the reduction of ATP formation in tissues under hypoxia of any nature. Earlier, a new pharmaceutical preparation based on the porphyrincontaining fullerene “ball” C60 has been proposed [14,15]. This novel drug is a monoadduct of an iron-containing porphyrin with the classical buckminsterfullerene, buckminsterfullerene(C60)- 2-(butadiene-1-yl)-tetra-(o-γ-aminobutyryl-o-fthalyl)- ferroporphyrin. It was named porphyllerene-MC16, or PMC16. The particles are low-toxic and exhibit notable cationic properties.

Some drugs can suppress oxygenating ADP phosphorylation in mitochondria and cause hypoxia. Nano quantities of [²⁵ Mg²⁺] could accelerate phosphorylation pathways up to 2.5 times [15]. Mg isotopes substitute each other in the active site of creatine kinase owing to endoosmotic pressure [13]. This promotes the magnetic isotope effect of [²⁵ Mg²⁺], which is an important hyperactivating element of the magnesium-dependent control of ATP synthesis [15-18]. One can conclude, that the targeted delivery of the aforementioned magnetic isotope to hypoxia-affected cells or tissues is a really important pharmacological problem. Nanoparticles capable of [Mg²⁺] ion exchange may be a suitable vehicle for such delivery [13].

It should be noted that the creation of in silico models of pharmacokinetics of targeting and selective accumulation of PMC16 line nanoparticles is extremely important for optimising further research in this field and has all the necessary novelty and relevance. Speaking of the direct and explicit practical benefits that are expected to be derived from the appropriate use of mathematical modelling in determining the preclinical study design of antihypoxic drugs, it should be noted that such modelling is an essential requirement for optimising the study design of all new drugs.

This paper will discuss the application of a new evolutionary algorithm, the interacting countries algorithm [19], to solve the problem of finding the parameters of a pharmacokinetic model of intravenous administration of porphyrin-fullerene PMC16 nanoparticles releasing [²⁵ Mg²⁺]. The aim of the work was to improve the agreement of the model with experimental data of PMC16 distribution in organs in comparison with the previous work [20]. This article will consider the application of a new evolutionary algorithm – the algorithm of interacting countries [19] to solve the problem of determining the parameters of a pharmacokinetic model of intravenous administration of porphyrin-fullerene PMC16 nanoparticles releasing [²⁵ Mg²⁺]. The aim of the work was to improve the agreement of the model with experimental data of PMC16 distribution in organs in comparison with the previous work [20].

Materials and Methods

The Algorithm of Interacting Countries

Before presenting the point of the algorithm, it should be noted that in this context, “country” means a group of N individuals (solutions). The proposed algorithm includes a sequence of actions performed either by the whole country or by separate individuals within it. All actions performed within the framework of the algorithm can be conditionally divided into natural and specially created ones. Let us start the description of the algorithm with the description of natural actions; there are only two of them – reproduction and extinction.

Reproduction

By analogy with the genetic algorithm, in the algorithm of interacting countries, all individuals within the country are trying to leave their legacy by reproduction. At the same time, it is worth noting that the algorithms for the formation of a child based on two (or more) parents do not play a role in this case and can be selected during implementation, as well as the algorithm for selecting parental individuals from the population. However, the algorithm determines the number of pairs producing offspring for each individual country. This number for the i-th country for the minimisation process is determined by the formula (1):

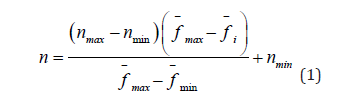

where n is the required number of pairs, n_max is the maximum number of pairs, n_min is the minimum number of pairs, is the average value of the objective function for the country, is the maximum average value of the objective function among all countries, is the minimum average value of the objective function among all countries. The found n is rounded to the nearest integer. This mechanism ensures an increase in the number of offspring in more adapted countries and a decrease in less adapted ones. It can be considered logical that in societies with a higher level of well-being and greater resources, more offspring will be born, similar to animals in nature, where more prosperous conditions ensure a higher birth rate. When a new individual is formed, each of its genes (an independent variable) undergoes mutation. Thus, the i-th gene can be calculated using the formulas (2-3):

where p is the mutational deviation, p_max is the maximum mutational deviation, p_min is the minimum mutational deviation, t_i is the current iteration of the algorithm, t_max is the maximum possible iteration of the algorithm. The mutation mechanism allows you to diversify the set of individuals in a country to reduce the chance of degeneration. In addition, it can be noted that the deviation from the parent individuals in the first iterations will be much larger than in the last, which will allow you to quickly find the area to find the optimum, this idea is inspired by the weed algorithm. Also note that for better adapted countries, offspring will mutate less than for less adapted ones, which will allow the more adapted to localize in the area they have found and the less adapted, on the contrary, to move away from the area where they are.

Extinction

The second natural action, which happens to countries, is extinction. Each iteration of the algorithm removes m worst individuals from each country based on the value of their objective function. The value of m can be found by the formula (4):

where m – is the required number of extinct, m_max – is the maximum number of extinct, m_min – is the minimum number of extinct. Thus, individuals in less adapted countries will die out more actively than in more adapted ones, which again seems logical, as with reproduction. The algorithm also contains four artificial actions on countries – movement to the leader, exchange of individuals, war and epidemic.

Movement Towards the Leader

Movement towards the leader is an analogue of certain internal political movements that take place in a country, when residents follow the ideals of their leader. This mechanism is inspired by the migration and through this process, all individuals within the country move towards what is considered the best according to the formula (5):

where is the current individual, is the best individual in the country. The mechanism of movement towards the leader will bring all individuals within the country closer to the best, in order to find a solution in its vicinity.

Exchange of Individuals

The exchange of individuals is an analogue of peaceful relations between different countries, for example, the opening of embassies or migrations between countries, during which countries change k random individuals among themselves. If the size of one of the countries is less than the specified k, then it is equal to half of the number of individuals in that country. This mechanism is largely based on the classical island algorithm and it is assumed that it will reduce the degradation of individual countries and, possibly, prevent the “subsidence” of weak countries by introducing more adapted individuals into them.

War

War is a more radical mechanism than the exchange of individuals, and is an analogue of real military conflicts with the extermination of the enemy and the capture of prisoners. War not only controls the degeneration of individual countries, but also limits the total number of individuals within all countries. During the war, two countries choose l random warriors from their set of individuals. The warriors are compared in pairs with the individuals of the opponent’s country and the losers are removed during this comparison. In this case, the number of victories is calculated when comparing for each country. The country that has won more victories takes both its warriors and the enemy’s warriors, in case of a draw, the warriors are returned to their countries. If the size of one of the countries is less than the specified l, then it is equal to the number of individuals in that country.

Epidemic

Epidemic is an action that is primarily aimed at avoiding the degeneration of a country, as well as reducing the total number of individuals. This mechanism assumes that the more epidemics an individual has experienced, the less it is affected by the next epidemic, due to the developed immunity. During the epidemic d% of individuals dies out, e% of individuals is left unaffected, and the rest mutate according to the formula (6):

where n_ep – is the number of epidemics that the current individual has experienced.

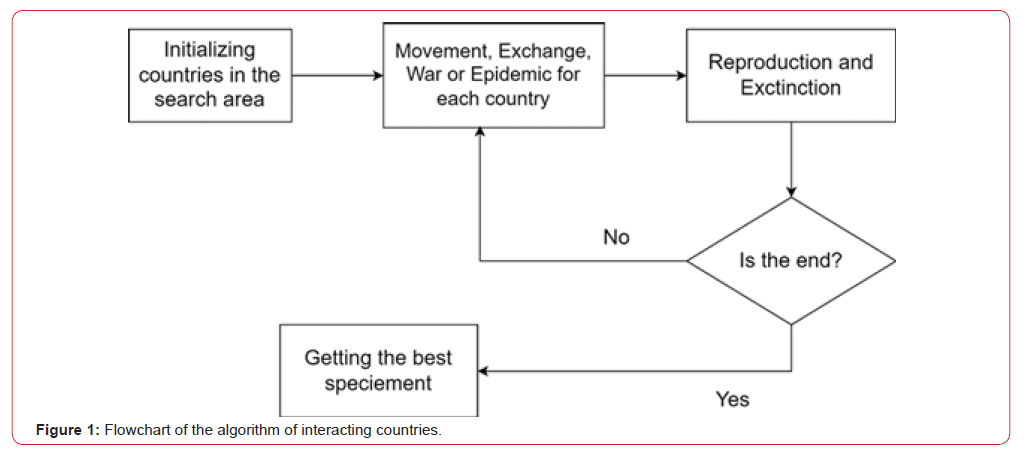

The interacting country algorithm works as follows (Figure 1):

Figure 1:Flowchart of the algorithm of interacting countries.

1) The algorithm parameters that are necessary for the implementation of all its parts are being set.
2) M countries with N individuals are initialized, while each country is initialized in a separate subdomain of the global parameter search area.
3) For each country, one artificial action is chosen – movement to the leader, exchange, war or epidemic. At the same time, for actions, where a country needs a second country (exchange, war), the same action is also selected for the second country.
4) The selected action is performed for each country.
5) Reproduction happens. If, at the time of reproduction, there is only one individual in the country, this individual joins a random country, and the previous country of this individual ceases to exist.
6) Extinction happens.
7) If there are countries without individuals, they are removed.
8) Steps 3-7 are taken iteratively until the iteration limit is reached.
9) The best solution is chosen in the best country (Figure 1).

The algorithm of interacting countries was implemented as a part of a library for building the pharmacokinetic models Py Pharm [21], which is written in Python and was previously applied in fitting the parameters of the pharmacokinetic model of intravenous bolus administration of [3H]-cycloprolylglycine [19, 22].

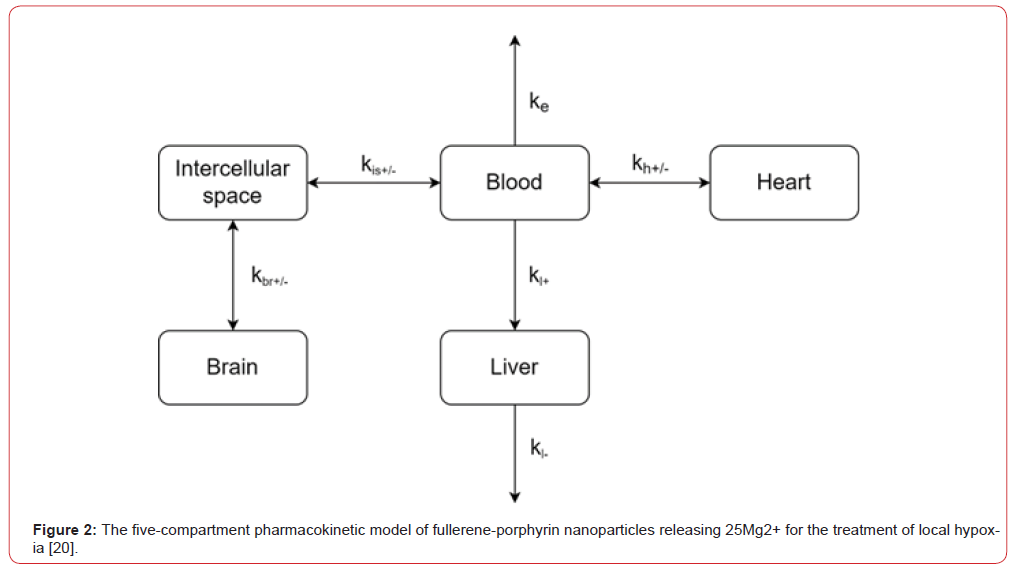

Figure 2:The five-compartment pharmacokinetic model of fullerene-porphyrin nanoparticles releasing 25Mg2+ for the treatment of local hypoxia [20].

where C_b, C_l, C_h, C_is, C_br reflect the concentrations of nanoparticles in blood, liver, heart, brain intercellular space and brain cells, respectively.

Function (8) was used to quantify the accuracy of the model, as well as an objective function for fitting model parameters using the interacting countries algorithm:

where k is the number of data sets, n is the number of data in the i-th set, is a calculated concentration value for the i-th set at j-th point and is the experimental one, is a mean concentration value over the i-th experimental data set.

The data sets used were the mean values of PMC16 concentrations in organs - heart, liver and brain cells of the animal, and blood (total 4 data sets) at time points t = 0.25, 0.5, 1, 4, 8, 24 h, when administered once at a dose of 0.2 mg/μg. In detail, the data of the in vivo experiment are given in [20] (number of animals n = 5).

The settings of algorithm of interacting countries (Table 1) were chosen based on the previous studies. These include testing the efficiency of algorithm on a set of test optimisation functions and using the algorithm to find model parameters for the pharmacokinetic model of intravenous bolus administration of [3H]-cycloprolylglycine [19,22].

Results

Fitting The Parameters of the Pharmacokinetic Model of [²⁵ Mg²⁺] Porphyrin-Fullerene Nanoparticles

In [20], the authors conducted in silico modeling of the pharmacokinetics of [²⁵ Mg²⁺] porphyrin-fullerene nanoparticles in rats after a single intravenous injection. The authors proposed a five-compartment (Figure 2) model to describe the distribution of a drug substance in the body targeted for the treatment of ischemic stroke. Nanoparticles after administration spread through the blood and enter the organs. Model parameters with a “+” sign reflect the process of substance delivery to an organ, and parameters with a “-” sign reflect the removal of the substance from the organ. For example, k_h+ characterizes the rate of PMC16 delivery to the heart, and k_h- is responsible for the removal of the substance from the heart back into the blood, Parameter ke is responsible for the elimination of the substance from the blood, and kl- is responsible for its excretion through the liver. Since PMC16 penetrates at a different rate into the stroke region than into the healthy brain region, the introduction of the “intercellular space” compartment allows us to take into account the magnitude of brain damage in ischemic stroke through the k_is+ parameter [20].

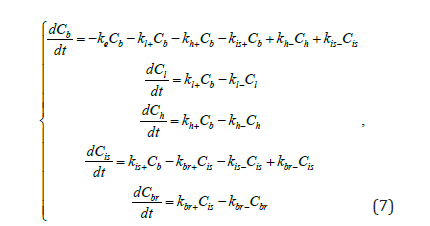

This model can be described with a system of ordinary differential equations (ODEs) (7) [20].

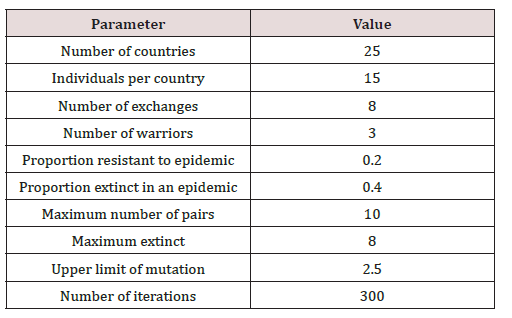

Table 1:Settings of algorithm of interacting countries used in this work.

Using this function, the accuracy of the model with parameters presented in the authors’ article [20] was evaluated. The value of the function F was 4.02. In the next step, parameter fitting for the model (7) was conducted with a slight modification. Similar to [20], the elimination constant k_e was fixed at the value of 0.077, however, an additional parameter k_t was introduced, responsible for converting the input concentration units to output concentration units. This parameter is necessary because the administered dose of the drug is given in mg/ml, the calculations are performed in the same units, while the experimental data on concentrations in organs [20] are provided in ng/mg of protein S125. The fitted values are given in (Table 2).

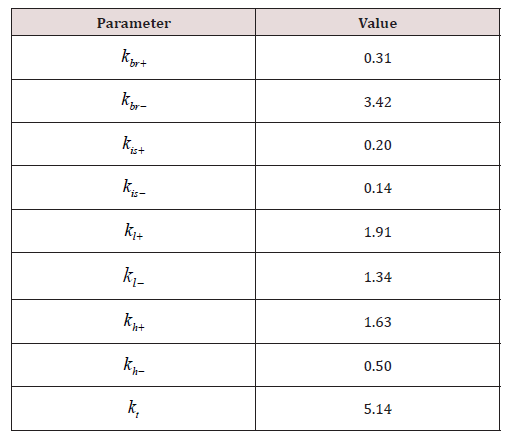

Table 2:Fitted parameter values for the original model (7) [20].

The model with parameters fitted using the algorithm of interacting countries significantly outperformed the accuracy of the model with original parameter values (F=1.35 vs F=4.02).

At the second step, an attempt to improve the results was made by taking into account the compartment volumes. The second model can also be represented using a system of ODEs (9):

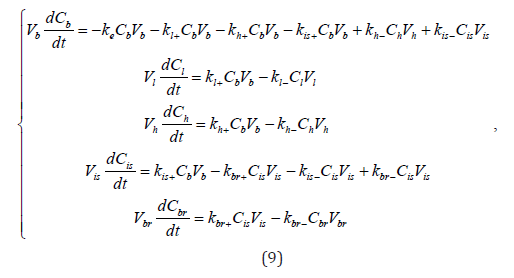

Five new unknowns representing compartment volumes, were added in the second model. Parameters of the second model accounting for compartment volumes was also fitted using our algorithm (Table 3).

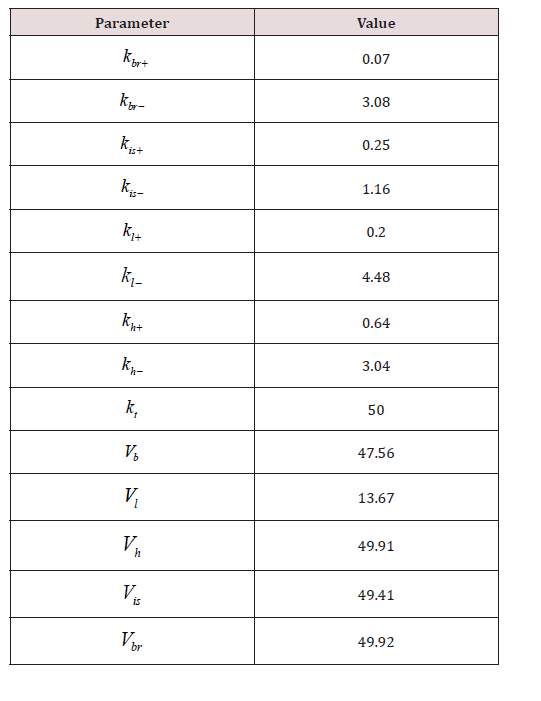

Table 3:Fitted parameters values for the model (9), which takes into account the compartment volumes.

Discussion

The second model allowed to improve the value of the objective function, but this improvement was insignificant (F=1.31). The comparison of models’ results is presented on (Figures 3-5), which shows the evolution of drug concentration for specific organs in time. For the original experimental data, confidence intervals were constructed with the confidence level β=0.95. Since the original experimental studies were conducted using n = 5 animals [20], t-distribution for the corresponding mean values was used to construct the confidence intervals. The confidence intervals determination was made using the stats module of SciPy Python library.

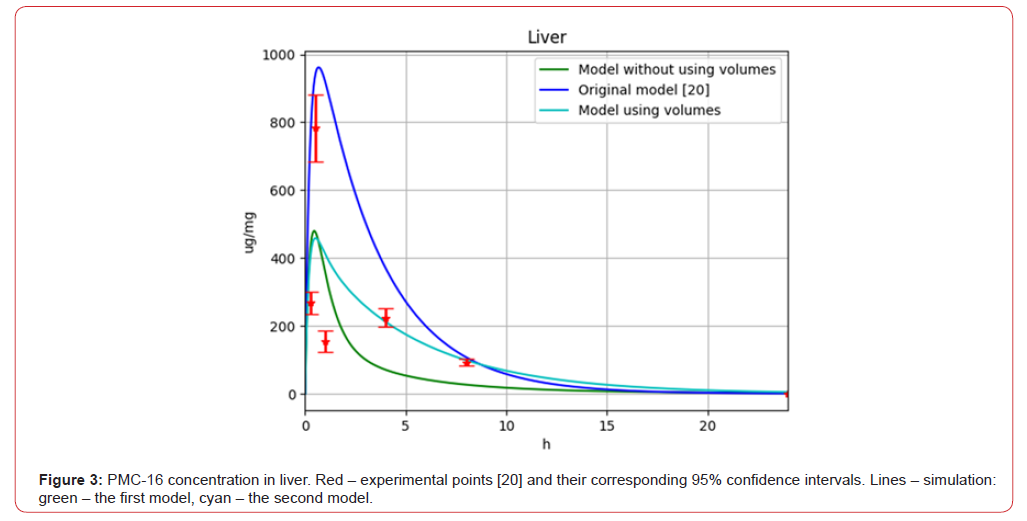

Figure 3:PMC-16 concentration in liver. Red – experimental points [20] and their corresponding 95% confidence intervals. Lines – simulation: green – the first model, cyan – the second model.

Figure 4:PMC-16 concentration in heart. Red – experimental points [20] and their corresponding 95% confidence intervals. Lines – simulation: green – the first model, cyan – the second model.

Figure 5:PMC-16 concentration in brain. Red – experimental points [20] and their corresponding 95% confidence intervals. Lines – simulation: green – the first model, cyan – the second model.

Analysing the modelling results, it can be concluded that both our models with parameters fitted the algorithm of interacting countries significantly outperform the original model from [20]. The value of the objective function decreased by approximately 67% for the second model. Meanwhile, it was found that a second model considering compartment volumes slightly better fits the experimental data than a model without compartment volumes. It is also worth noting that none of the three models fully fit within the 95%-confidence intervals for the data, which may indicate either specificity of data or imperfect choice of multi-compartment model structure.

Conclusions

In this article, a new evolutionary algorithm was employed for the first time to tackle pharmacokinetic problems of a fullereneporphyrin nanopharmacophore, PMC16. The algorithm enabled finding pharmacokinetic parameters of two variants of a fivecompartment model for [25Mg2+] porphyrin-fullerene nanoparticles (PMC16) after their single intravenous administration. Results obtained by the algorithm surpassed the accuracy of our previous work [20] approximately threefold, besides proving its efficiency for models with varying numbers of unknowns. Consequently, an evolutionary algorithm can effectively be applied in the pharmacokinetic modelling for promising nanopharmacophores, and may be further used in solving various pharmacokinetic problems.
